Flexibility and reliability are critical for antimicrobial films in medical settings

Drytac Protac AMP Ventilator

Applications in medical and healthcare environments require antimicrobial films that are both reliable and steadfast. Drytac Protac AMP offers this and much more.

The Covid-19 pandemic has led to a significant rise in the use of antimicrobial protection products, in an effort to help protect people across a number of environments.

However, the use of such products places a tremendous amount of pressure on those tasked with carrying out the installation work. How can they guarantee the film will not only help prevent the spread of Covid-19, but also stand the test of time in what are often challenging and high-touch environments?

Drytac Protac AMP antimicrobial protection film has been put to work on all sorts of projects over the past 12 months, playing a critical role in allowing some businesses to reopen, as well as helping others carry out work in a safe manner throughout the crisis.

Perhaps the most important use of Drytac Protac AMP is in medical and healthcare settings, which have faced unprecedented levels of pressure during the pandemic as staff work day and night to treat people around the world.

Drytac’s Protac AMP has also been involved in the ‘Ventilator Challenge’ group which was set up at the start of the pandemic. Comprising industrial, technology and engineering companies from across the aerospace, automotive and medical sectors, the businesses came together to produce medical ventilators for the UK.

The flexibility of Drytac Protac AMP means it can be applied to a range of medical surfaces, including on machinery such as these mechanical ventilators, which have played a critical role in helping to treat people suffering with Covid-19.

Protac AMP is the perfect solution for applying graphics – in this case important control instructions –  to ventilators, mainly due to the fact that the film offers extremely strong performance over its lifetime. Such is the flexibility of Protac AMP that it can be applied to a wide range of heavy-touch surfaces, including machinery where buttons are constantly being pressed.

Another obvious benefit of working with Drytac’s Protac AMP film in medical and healthcare environments is that it has Microban® antimicrobial protection. When harmful microbes meet the film, the cell walls of the microbes are disrupted and are unable to reproduce, which in turn cuts the risk of bacteria spreading.

Protac AMP guarantees the graphics remain in place for at least eight years. If the overlay graphics were to fail, then this would raise all sorts of safety issues, and potentially put the lives of patients at risk.

The reason Protac AMP is so durable and able to stand the test of time is that it is hard coated, making it not only resistant to daily and industrial use, but also vigorous cleaning with the chemicals used in hospitals and other healthcare environments.

Safe in the knowledge the ventilators are produced with Protac AMP, a reliable and high performing material, supplied by a company with a host of globally recognised credentials, healthcare professionals around the world can continue their incredible work in fighting back against Covid-19.

For more information on Drytac Protac AMP antimicrobial protection film, please click here.

Read more

How HP Latex ink works

The media that Drytac manufactures is part of a larger solution; before any graphics application can be delivered, it needs to be printed and finished. Understanding how materials work with specific print and ink technologies is a key foundation of the company’s product development.

Drytac maintains a close relationship with hardware and ink manufacturers to ensure its products achieve the best results and – as part of this close collaboration – Drytac launched a series of ink blogs written by some of these leading businesses.

In this blog, Bruce Wayne Van Greunen, Pre-Sales Technical Consultant at HP, explains how HP Latex ink works.

Explainer: How HP Latex ink works.

Authored by Bruce Wayne Van Greunen, Pre-Sales Technical Consultant at HP.

Have you ever wondered how HP Latex ink works?

History

Until 2008, the 3 primary digital print technologies used were Aqueous or Water-based inks, Solvent and UV Based inks

  • Aqueous or Water based ink –was used primarily for indoor use, the quality was great, with excellent colour gamut, but the durability and water fastness meant it was not really suited to outdoor applications.
  • Solvent based inks –They were used primarily for outdoor signage, the water resistance and UV stability made it perfect for Outdoor applications, but the print quality was not great for up close viewing. Eco Solvent inks a subset of Solvent inks along with Mild Solvent, were developed as an economy version of solvent inks by removing some of the more costly chemicals.
  • UV cured Inks the king of rigid media, what they lacked in flexibility they made up for in adhesion, UV could print onto almost any surface but the colour gamut and print quality was similar to that of the solvent ink of the time. A flexible version of UV ink was later developed, but it lost some of its adhesive power, and to use it the inks had to be physically swapped at the expense of time and with significant waste in ink.

Then in 2008 HP launched the world’s first water based outdoor durable ink, HP latex ink technology.

The objective was to have the world’s first and most environmentally conscious print technology in the market. HP latex Inks also boasted having the best of both worlds, the quality of water-based inks and the outdoor durability of Eco Solvent based inks. This offered unparalleled versatility for the first time, one printer could offer both indoor quality as well as outdoor durability using the same ink set, as well as being safe for the environment and the operator.

By 2013 HP had released the 3rd generation of the HP Latex ink.

HP are continually improving the HP Latex ink technology and the printer performance. By Introducing the Optimizer, a clear ink that helped eliminate the requirement for dryers in the print zone, while maintaining the perfect dot gain. HP also added an anti-scratch component into the ink for improved durability of the print and improving efficiency of the curing technology allowed for an increased productivity.

In 2018 HP debuted the HP Latex R Printer Series, with hybrid capabilities, a Roll to Roll and Flatbed Printer. This introduced the 4th generation of the HP Latex ink, and the first HP Latex to have white ink.

The 4th Gen inks further reduced curing temperatures, allowing for even more media variety, and separation of the anti-scratch component from the ink to a separate ink called the Overcoat. Having the Overcoat separate means there is a choice on when to use it, like when the print is going to be laminated in the case of high abrasion applications such as vehicle wrapping, there is no need to use the Overcoat.

And of course, the whitest of white inks in the industry.

On February 2nd, 2021 HP introduced the HP Latex 700 and 800 series of printers also available with HP Latex white ink.

The mechanics

In both the 3rd and 4th generation HP Latex inks, the Optimizer is the first drop fired from its HP Thermal Inkjet printhead.

The positively charged particles in the optimizer are only placed where the image is going to be printed.

This is followed by a droplet of ink that is fired from its HP thermal Inkjet printhead.

That drop of HP Latex ink consists of:

–           Water (65%),

–           Pigments (colourants)

–           Latex polymers (synthetic, totally hypoallergenic)

–           Tiny amounts of other chemicals

The negatively charged pigment is attracted to the positively charged Optimizer, giving perfect control of the dot gain, and ensuring that most of the pigment is at the bottom of the solution on the media.

Finally, the Overcoat (if needed) is printed on top.

The media moves through the print zone towards the curing system where evaporation starts to remove the water.

In the curing zone of the printer the remainder of the water is evaporated, and the Latex polymers and the anti-scratch components are melted to encapsulate the pigments onto the surface of the media.

Finally, a thin, transparent, flexible, and waterproof latex film is formed, the anti-scratch agent protects the pigments from being scratched, the print is ready to be handled, and is ready to be finished!

The benefits of HP Latex

Productivity:

  • The prints are completely dry out of the printer.
  • The media is fully conformable, without the risk of cracking or fading when stretched.
  • Does not change the characteristics of the media, so unlike UV and Solvent based inks they do not change the characteristics of the media you print onto, so if the media is Fire Rated or recyclable it retains the ratings even if they are printed with Latex.
  • Versatility, the ability to print onto an even wider range of medias from paper to PVC, SAV to PETG, or even textiles.

Ease of use:

  • With great design and many time saving features, and the ability to observe and manage your production with HP PrintOS (www.printos.com)

Good for the environment and for the operator

  • HP Latex Printing Technologies provide many opportunities to reduce and recycle. The ink cartridges, printheads and in some cases the maintenance cartridges are recyclable free of charge though the HP Planet Partner program (https://www8.hp.com/uk/en/hp-information/recycling/ink-toner.html).
  • The 4th Generation HP Latex ink cartridges are made from cardboard and a readily recycled with your current cardboard and paper. The printheads can be recycled through the HP Planet Partners program.

About Drytac ICC Profiles:

Drytac understands that media profiling is key to the success of any of its products; having access to thousands of profiles for materials on a wide range of different printers is paramount. By working in tandem with hardware manufacturers, Drytac creates easy access to profiles.

Drytac also has the in-house capability to provide custom profiles as required for its customers for any specialist application, to maximise the colour output. More information can be found here.

Read more

Fast forward to fast food

Drytac explains how products imbued with antimicrobial technology can help fast food outlets protect surfaces from bacteria, fungi and mould in between cleaning.

Authored by Shaun Holdom, Global Product Manager, Drytac.

With the food, beverages and hospitality sectors having been hit particularly hard by the Covid-19 pandemic, Drytac has sounded out how its Protac AMP antimicrobial protection film can help restaurants reopen as the world begins to edge back towards normality.

Covid-19 restrictions meant many fast food restaurants and eateries were forced to close for large parts of 2020, costing them millions in lost income and resulting in many staff losing their jobs. However, with the pandemic now starting to subside, and vaccination roll-outs ongoing, restaurants are looking forward to welcoming visitors back through their doors.

While this reopening is fantastic news for restaurants and other catering venues, they will still face a number of strict social distancing and safety measures before they are allowed to get back to business.

Thankfully, there are products on the market that help businesses adhere to these strict requirements by protecting surfaces from bacteria, fungi and mould, in between cleaning.

One such solution is Drytac’s Protac AMP antimicrobial protection film. This flexible, self-adhesive product can be easily applied to a wide range of high-touch surfaces – including counters, door plates, touch screens and tables – helping to prevent the spread of harmful bacteria and microbes.

Protac AMP features Microban® antimicrobial protection, meaning when harmful microbes meet Microban reservoirs in the film, the cell walls of the microbes are disrupted and they are unable to reproduce, which significantly reduces the risk of any spreading.

Aside from the stand-out benefits of helping cut the risk of bacteria on surfaces, Protac AMP film also ensures that they are protected from stains, odours and premature degradation caused by bacterial growth.

Such is the strength of Drytac Protac AMP with Microban technology that the film will help protect against other bacteria in the long-term, including those that cause the most issues for restaurants such as E. coli and Salmonella.

At a time when restaurants and other venues need all the help they can get to reopen without putting the health and safety of their staff and customers at risk, Drytac Protac AMP offers a cost-effective and highly reliable solution for hospitality businesses of all sizes.

For more information on Drytac Protac AMP antimicrobial protection film, please click here.

Read more

Roland DGA: Types of inks for digital printing

Understanding how print media and ink technology work is key

The media that Drytac manufactures is part of a larger solution; before any graphics application can be delivered, it needs to be printed and finished.

Understanding how materials work with specific print and ink technologies is a key foundation of the company’s product development.

Drytac maintains a close relationship with hardware and ink manufacturers to ensure its products achieve the best results. As part of this close collaboration, Drytac has launched a series of ink blogs written by some of these leading businesses.

In the brief blog that follows, Lily Hunter (above) from Roland DGA explains a bit more about the types of inks for digital printing.

Types of inks for digital printing

Authored by Lily Hunter, Roland DGA Product Manager, Textiles, eCommerce and Supplies

My kids love visiting Roland DGA headquarters to see all the different types of printers and the cool things our inkjets can produce. They typically ask me to print on a variety of things, ranging from banners and stickers to clothing and backpacks. While they know that there are different printers for different types of print jobs, they’re still too young to understand the differences between an eco-solvent, UV or dye-sublimation model. In their minds, all I need to do is put an object into whichever printer I choose, and it will magically come out with their customised design printed on it! When I try to educate them, I get blank stares… followed by a request to custom print another item.

I’ve spoken to a variety of people at trade shows, and even friends, who are interested in learning more about digital printing. Whenever I do so, I break it down to the types of inks and what they’re used for. This helps match the application to the best print technology. For Roland DGA printers, here’s a quick breakdown of ink characteristics.

Eco-Solvent

Mild solvent is the carrier liquid for the pigments. During the printing process, the solvent ‘bites’ into the media and deposits the ink pigments. The heat from the printer platen evaporates the solvent, leaving the output vibrant and dry. These are extremely versatile inks that can be printed onto a variety of media, like decals, posters, signage, canvas and heat transfer paper, allowing for many different types of applications.

UV

Again, mild solvent is the carrier liquid for the pigments. The UV inks lie on the surface of the media or blank, before a UV lamp goes over the printed area to cure or dry the inks. You’re able to build up the ink layer and create a variety of textures on either rolled material or flat material. The output is dry and can have a glossy, satin or matte finish, depending upon the UV lamp and curing process. This printing technology is good for signage, promotional products and even fine art.

Dye Sublimation

Water is the carrier liquid for dyes in this process. You print onto a transfer paper, the output mirrored and looking dull and unimpressive at this stage. Sublimation takes place at the heat press, where the inks are transferred from the paper onto a polyester fabric or polyester-coated rigid substrate. At 400°F (204°C), the solid inks from the paper turn into gas and penetrate the polyester – this is when the colours bloom and become vibrant. Dye sublimation is ideal for textiles such as apparel or soft signage, but it’s also used for promotional items, décor and metal photo panels.

Pigment

This type of ink, where water is the carrier liquid for the pigments, is used in Roland DGA‘s compact direct-to-garment (DTG) printer, the VersaSTUDIO BT-12. Just like with UV, the inks lie on top of the surface of the fabric, typically cotton-based products. Colours are vibrant, but the inks still need to be cured, which is done on the heat press. Unlike dye sublimation, the inks do not penetrate the fibres, but are cured on the surface.

To learn more about Roland DGA inks, printers, and applications, visit https://www.rolanddga.com/

About the author: Lily Hunter currently serves as Product Manager, Textiles and Consumable Supplies for Irvine, California-based Roland DGA, where she manages Roland’s textile and dye-sublimation printer portfolio, as well as the company’s media product line. Prior to joining Roland DGA in 2013, Hunter held various sales support and product management positions over a 14-year period with Arlon Graphics.

About Drytac ICC Profiles:

Drytac understands that media profiling is key to the success of any of its products; having access to thousands of profiles for materials on a wide range of different printers is paramount. By working in tandem with hardware manufacturers, Drytac creates easy access to profiles.

Drytac also has the in-house capability to provide custom profiles as required for its customers for any specialist application, to maximise the colour output. More information can be found here.

Read more

Fujifilm: How to formulate ink adhesion

Understanding how print media and ink technology work is key

The media that Drytac manufactures is part of a larger solution; before any graphics application can be delivered, it needs to be printed and finished.

Understanding how materials work with specific print and ink technologies is a key foundation of the company’s product development.

Drytac maintains a close relationship with hardware and ink manufactures to ensure its products achieve the best results. As part of this close collaboration, Drytac has launched a series of ink blogs written by some of these leading businesses.

In the brief blog that follows, Andrew Berritt (right) from Fujifilm explains a bit more about ink adhesion.

How to formulate ink adhesion

Authored by Andrew Berritt, Marketing Manager at Fujifilm.

To formulate ink adhesion, we should first look at surface tension and energy. The first step is the initial interaction between ink and media, which is driven by the ink’s surface tension and the surface energy of the media. In general terms, the ink needs to have a lower surface tension than the energy of the media to be able to ‘wet’ the substrate. Without this, the ink would reticulate and mottle – basically the effect you’d see with water on glass.

On the other side of the spectrum is if the surface tension is ‘too low’ versus the energy of the media, which would cause the ink to spread too greatly. In this case you would see a lot of bleed and lose definition. This balance is how you can maximise clarity and drop spread before curing the ink.



The second phase is adhesion. Now the ink is on the media, how it ‘sticks’ and can be designed to stick varies dependent on the media. If we take PVC, the media can be chemically altered by the ink to create swelling and penetration into the surface (how solvent inks always work).

This is your ideal form of adhesion as the ink film becomes an integral part of the media. This isn’t possible with inert surfaces such as polypropylene and polystyrene so other technologies need to be adopted. You can improve the surface wetting, reduce polymerisation shrinkage to maintain the touch points and also match up the polarity in the inks so they attract one another from a polar perspective.

About Drytac ICC Profiles:

Drytac understands that media profiling is key to the success of any of its products; having access to thousands of profiles for materials on a wide range of different printers is paramount. By working in tandem with hardware manufacturers, Drytac creates easy access to profiles.

Drytac also has the in-house capability to provide custom profiles as required for its customers for any specialist application, to maximise the colour output. More information can be found here.

Read more

Not all antimicrobial coatings and products are created equal

The pandemic has led to a rise in the use of anti-bacterial and antimicrobial products. However, users need to choose carefully in order to achieve maximum protection.

Authored by Shaun Holdom, Global Product Manager at Drytac

The global pandemic has changed our world and society in significant ways. COVID-19 has drastically changed our perception of hygiene and cleanliness, spurring the development of films and coatings with antimicrobial performance.

Previously, these coatings and products struggled to find widespread adoption due to difficulties in qualifying their effectiveness on human health and justifying any additional costs. However, the pandemic has drawn attention to measures that can provide additional protection and reassurance to the general public and this has created a new need for antimicrobial surface protection.

It should be noted, however, not all antimicrobial coatings and products are created equal. Some are only effective against bacteria (antibacterial) while some are effective against a wider range of microbes – such as algae and fungus – offering antimicrobial protection. However, this performance does not necessarily protect against viruses, so users need to choose carefully.

When considering products for use as a preventative measure and increasing hygiene performance, it is important to understand the limitations of the three main antimicrobial technologies: zinc, silver and copper. All can provide protection against bacteria, but only some can offer antimicrobial protection.  As damage or cuts on the film can harbour bacteria, it is important for the additive to be imbued in the film rather than in a top-coating which can be easily scuffed, scratched and worn.

Perhaps most important when seeking out antimicrobial protection is to be extremely wary of some of the claims currently being made in the marketplace. New disinfectant and additives used within antimicrobial solutions MUST have ECHA (European Chemicals Agency), EPA (United States Environmental Protection Agency) and FDA (Food and Drug Administration) approval to make valid effectiveness claims; all biocides and pesticides have to be registered.

All governments promote a test, test, test attitude when it comes to infection control and protection films are no different. Third-party testing needs to be done to determine any effectiveness on any microbial activity. This simply cannot be a one-off; these need to be part of the quality control and batch-to batch-testing of the product to ensure the desired performance for all locations.

Where products claim to have effectiveness against viruses they must be registered as a virucide. A simple ISO 21702 Coronavirus test on one viral strain such as FCoV (feline coronavirus) or 229E (Human Coronavirus) does not qualify something to be anti-viral or effective for other strains/diseases, like COVID-19.

In addition, the claims of the effectiveness and protection of the product cannot extend outside of the classification of the product itself. This means that any marketing information surrounding potential health benefits are a no-no: they can lead to Advertising Standards Authority investigations and create public confusion.

There is no doubt that there will be major growth over the coming years in the requirement for antimicrobial technologies within many market sectors including medical, healthcare and general public spaces. This means that marketing and product information needs to be clear, concise and most importantly factual.

Drytac is the manufacturer of Protac AMP Film.

Read more

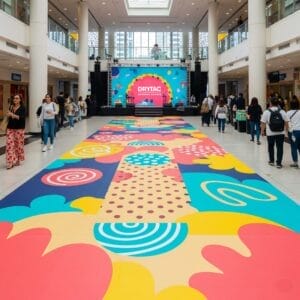

Don’t stand still: floor graphics certifications explained

UL 410 is the slip rating used on many floor graphics products – but it’s basically a test for standing still. George Sotter, President of Safety Direct America, explains the alternatives.

Authored by George Sotter, President of Safety Direct America

When choosing floor graphics materials, it is essential they are suitable and safe for their intended environment. Products must adhere well to the floor surface for the desired duration of the project without curling at the edges and have a non-slip surface to prevent accidents. In the USA, UL 410 is the most commonly used certification for floor graphics products – but there are other tests and ratings that are more suitable for modern use.

UL 410

The UL 410 standard rates various materials and surfaces as ‘slip resistant’. They are tested for their static coefficient of friction (COF), which is the measure of how slippery a floor is when someone is standing still on it. This figure, therefore, is irrelevant for any occasion when a pedestrian is walking across it – which is, naturally, when slip resistance is most important.

The laboratory-only test method for UL 410 is also somewhat out of date. It was devised roughly 80 years ago to test the floor waxes of the day, which are no longer used, having since been replaced by plastic coatings or floor finishes. It is also seldom used to evaluate hard flooring such as ceramic tile or natural stone. Unfortunately, it has often been applied in this way, indicating that the floor complies with a safety standard when in fact it does not.

Should litigation occur requiring a test of a floor graphic, it would be impractical to use UL 410 because it requires a separate test piece that can be put in a laboratory machine. Passing UL 410 therefore might not help the property operator. Perhaps more importantly, relying on a UL 410 rating to assure users of slip resistance could pose an inadvertent injury risk.

ANSI A137.1/A326.3

ANSI ratings are an alternative to UL 410 and are increasingly used by floor graphics media manufacturers. The ANSI specifies a minimum dynamic COF, wet or dry, of 0.42 for safety. The test uses a hard rubber slider to simulate the heel of a dress shoe. However, in addition to meeting this threshold, the user must consider six other factors: “type of use, traffic, expected contaminants, expected maintenance, expected wear, and manufacturers’ guidelines and recommendations.”

ASTM E303

The ASTM E303 test uses the pendulum skid tester and a soft rubber slider that simulates soft-soled footwear such as athletic shoes and boat shoes as well as bare feet. Normally in the pendulum test, a standard hard rubber slider is used to simulate the bottoms of dress shoes, including high heels.

This test has been in use since 1971 and is now a national standard in at least 50 nations. In addition, it has safety standards for many different situations that have been in use since being established in 1999. These standards happen to be in the UK (BS 7976) and Europe (EN 13036), but they apply equally well in other countries.

A big thank you to George Sotter from Safety Direct America for providing an insight into various slip-ratings and how to choose the correct slip rated media for safe floor graphics.  To learn more about Safety Direct America, please visit: https://safetydirectamerica.com/.

Here at Drytac, we work to certify our products to make your life easier. The last thing anyone wants right now is to create a safety risk. Please see a list of products below that comply with the ANSI A137.1/A326.3 and ASTM E303 standards.

Drytac ANSI A137.1/A326.3 Slip-Rated Products

Drytac ASTM E303 Slip-Rated Products


Drytac is here to help.

We offer the correct ratings and insurance backed warranties to make your life easier. With hundreds of certifications on our print media and laminates we’d be happy to help you plan your next project.

Download the Drytac Floor Graphic Guides to help you select the proper floor material and navigate various environments.


Read more

Protecting surfaces with antibacterial and antimicrobial technology

Drytac Antimicrobial Film

Drytac explains how new products imbued with antimicrobial technology can help protect surfaces from bacteria, fungi and mould in between cleaning.

Authored by Shaun Holdom, Global Product Manager, Drytac.

Keeping surfaces clean has never been more important. Doors, keypads, counters, tables – anywhere that people touch ­– must be cleaned regularly. Now there are some new products available that provide additional protection from within.

Microorganism-Fighting Technology

These products are imbued with microorganism-fighting technology during the manufacturing process, so it becomes part of the material’s physical structure and will not wash off or wear away. When bacteria contaminate the surface of the film – from human contact, environmental conditions or simply lack of cleaning – this technology helps inhibit bacterial growth. While not a replacement for regular cleaning, the treatment boosts the cleanliness of the surface in between cleanings.

Antibacterial vs Antimicrobial

There are two types of product to choose from: antibacterial and antimicrobial. Antibacterial films will protect only against bacteria, while antimicrobial films are effective against bacteria, plus fungi including mould, algae and mildew. The different effects depend on the chemistry – typically copper, silver or zinc.

Copper, Silver or Zinc Additives

The ions in copper prevent cell respiration and damage the bacterial cell membrane or viral coat to destroy it. Positively charged silver ions target and kill bacteria, fungi and certain viruses through several different means. Zinc-based additives, are broad spectrum antimicrobials, making them effective against many microorganisms including bacteria and fungi. The broader spectrum performance of antimicrobial substances makes them suitable for use in all environments.

Silver based technology can migrate out of the film and may become ineffective over 3-5 years.  Zinc based technology is designed to lock into the film and to protect the surface typically up to 15 years.

15 Years of Protection with Drytac Protac AMP Surface Protection Film

PRINTING United 2020 Product of the Year winner, Drytac Protac AMP Film is a 150μ (6 mil) textured polyester film incorporating Microban® technology, that provides antimicrobial surface protection. When microbes meet the Microban reservoirs in the film, the cell wall of the microbes is disrupted – resulting in 24/7 protection for up to 15 years, even if the film is cut. Protac AMP uses an organic zinc technology, providing the wide spectrum of protection most beneficial to sensitive environments. Every batch of Protac AMP is tested for antimicrobial performance providing the utmost confidence and peace of mind for any application. It also achieves up to 15 years’ adhesive durability indoors and 5 years’ outdoors and has so far been used on drinks machines, tray tables on aircraft, and in schools and healthcare facilities.

Read more

One film does not fit all – Why specialist products can pay off

A multi-purpose graphics film could seem like a good deal, but you may end up spending more money and time than you bargained for. Jerry Hill from Drytac explains why.

Authored by Jerry Hill, Vice President of Sales, USA, Drytac

The term ‘multi-purpose’ sounds great. One product for different applications, helping your business keep costs low and stock keeping units (SKU) simple – what’s not to like? However, in reality, that smart multi-functional product will be better for some jobs than others, in terms of appearance, performance, cost efficiency and longevity. This might seem like an acceptable balance, but some products claiming to be effective across multiple applications might do well for some jobs but perform downright poorly for others.

This is especially important when choosing graphics media. The type of product, and particularly its adhesive element, should be dictated by the application’s environment and required longevity. A multi-use product might perform well for a few weeks but may cause problems if left in place for months, after which the adhesive will fail. In the case of floor graphics, curling edges would pose a safety risk aside from looking unsightly. Conversely, the product may be designed for long-term or permanent use when the application is short-term. If so, you will spend more time and money removing it than you expected.

Naturally, the cost to your business – in money and time – is the big factor. Nobody likes paying more or taking longer to get results. It’s therefore understandable to look at the price and ease of use of graphics media developed for indoor applications and hope it will work just as well for outdoor graphics, for example. However, in this case, the indoor product will lack the weatherproof adhesives specifically engineered for exterior use, meaning it may simply fail. A specialist outdoor product would cost more but will offer peace of mind that results will last. Again, the reverse can be true: one product could be priced correctly for floors and the specialist adhesive this application requires but overpriced for walls where this adhesive would be too aggressive.

Indeed, even for indoor applications, the product must be compatible with the intended surface. In addition to remaining safely in place, it should be cleanly and easily removed at the end of the project. Products that are designed for high-tack applications such as brick can also work on windows, but be aware: apply it to drywall or plasterboard and it may never come off without pulling the wall surface away with it.

Alongside its suitability to do a job, consider the aesthetics of the product. There is a fantastic variety of textures and finishes available for graphics – why restrict yourself to a matte finish when you could choose glossy, or even sand, linen, canvas or woodgrain effect?

If you’re still leaning towards a product marketed as multi-purpose, consider a loaf of sliced bread. Perfect for toast in the morning, but how about as a hot dog bun? You could use it, but why would you want to? It completely changes the experience. That sliced loaf might be ideal for the kids’ packed lunches, but would you serve it at a dinner party? What if you or your guests have a gluten intolerance, or you simply want to serve something more special with your soup? One product might seem to tick all the boxes, but in reality it needs more thought. For a graphics application, just like in a bakery, the best thing since sliced bread might be a lot more sophisticated.

Here at Drytac, we have solutions designed for specific applications. You can view our solutions here! Please reach out to a team member if you have any questions.

Read more

Combat silvering to create gold-star work

Silvering can be a problem for photography and fine art, but one that can be solved. Drytac’s Gilbert Espinosa explains how to eliminate these silvery lines.

Authored by Gilbert Espinosa, Territory Manager for West Coast Region, Drytac

Silvering is a common issue that occurs when laminating a printed job. It’s caused by tiny bubbles of air getting trapped under the lamination, creating the appearance of hazy or silver reflective lines. It may go unseen on lighter media or light-colored printed areas, but can be far more obvious on darker colored or black images. In the photography and fine art sectors, silvering can be a problem – but one that can be solved.

First, it’s important to identify the cause of silvering. Not applying appropriate roller pressure, laminating too fast or using a media with an uneven surface – for instance paper with fibres or other media with a coarse or slightly coarse surface – may result in these silvery lines.

Silvering may also occur following wet out, the process of adhesives flowing out over the media and ink, which takes about twelve to 24 hours. Eco-solvent inks generally lay down smoothly on the surface of the media, so when the adhesive wets out it fills the area fairly evenly. UV inks, by comparison, lay down significantly less evenly, so when the adhesive flows out there are uneven areas or surfaces that are not covered with adhesive, potentially altering the graphic’s appearance.

If you are a user of UV inks, it is possible to avoid the issue of silvering by using an overlaminate product with a heavier than standard coat weight, as its adhesive can fill in the areas of uneven inks. This is especially true if the media is also uneven, such as a canvas or fibre-based product. Another factor can be the type of adhesive; softer adhesives flow out better and cover uneven areas better than harder adhesives.

Sometimes adhesion onto UV inks is an issue. Performing tests on UV inks for adhesion, peeling and silvering is recommended with a selection of different media and laminate products. It may well be possible to achieve an excellent finish by changing the combination of products rather than having to invest in another new type of ink chemistry.

If silvering is still an issue, one solution is using a matte overlaminate. The silvering is still there but is more difficult to see thanks to the matte finish; a glossy product would be more eye-catching. Drytac Protac Anti-Scratch Matte is a monomeric calendared PVC laminating film with an anti-scratch matte finish, which is coated on one side with a high-coat weight adhesive. It’s ideal for laminating over UV inks as well as eco-solvent and latex prints. Protac Anti-Scratch Matte is part of Drytac’s outstanding fine art and photography overlaminate range, which also includes Protac High Gloss and Protac High Gloss HD. In the UK and Europe, a line of high coat weight films are available, ideal for UV printed output. They include, Protac Glossy HCW UV, Protac Anti-Scratch Matte HCW UV and Protac Anti-Graffiti UV HCW. Drytac’s Interlam Pro Pressure Sensitive Overlaminating Films add depth and detail to a variety of flexible media substrates while simultaneously preventing the occurrence of silvering during lamination. There are many other options on the market that can add an incredible finish to graphics – take a look to see which is best for you.

Please reach out to one of our Drytac experts and we’d be happy to help you find the proper solution for your application.
